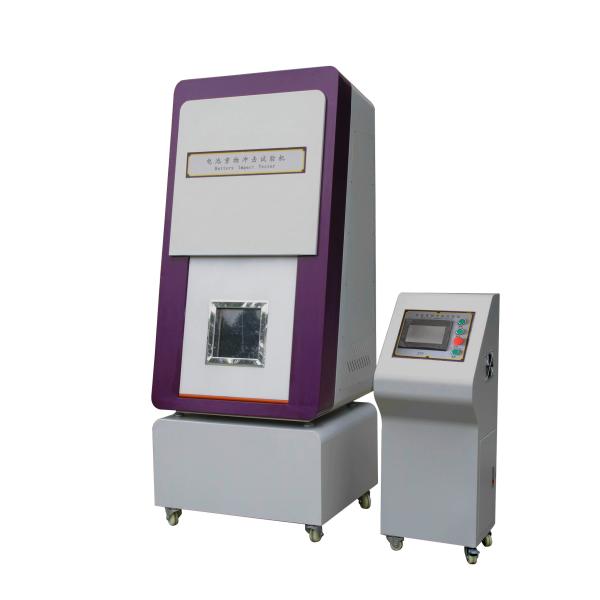

UN38.3 Standard Basis Battery Vertical Impact Testing Equipment Free Drop Tester

Name: UN383 Standard Basis Battery Vertical Impact Testing Equipment Free Drop Tester
Brand: Gaoxin
Price: 1 USD

Wholesale UN38.3 Standard Basis Battery Vertical Impact Testing Equipment Free Drop Tester from china suppliers

Brand Name : Gaoxin

Model Number : GX-5066

Certification : ISO 9001

Place of Origin : Gaoxin

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 15~20 days after payment

Packaging Details : Non-fumigation wooden box

Product name : Battery Impact Testing Machine

The hammer weight : 9.1kg

Drop height : (610±25)mm

Test simple max size : 300*300*100mm (L*W*H)

Dimension : 800x800x1520mm

Net Weight : Approx. 320 kg

Power supply : AC220±10%, 50/60HZ

Contact Now

Battery Impact Testing Machine for UN38.3

Product Description

This machine is used to simulate a battery (or battery pack) that is subjected to a weight of 9.1kg±0.1kg from a free-falling state of 610mm±25mm(or 1000mm) Battery internal short circuit destructive test, by observing the test results used to asscess the safety performance of the battery.

Product specification

Weight	9.1kg
Impact height	610 mm
Impact method	Lift the weight to some height and release the weight freely
Horizontal Bar	15.8mm(5/8 inch) diameter
Test chamber material	SUS#304 Stainless steel
Sealing strip	Silicone foam
Air outlet	120mm, in the back box
safe Door	Single door with explosion-proof observing window and explosion-proof stainless steel mesh
Impact flat	Reinforce Stainless steel board (if case of base plate sink because of gravity impact)
Power	AC220V,5A
Weight	About 105Kg
Control method: PLC+ wire control within 8 meters
Height display:	PLC
Impact model	Automatic return to the original position, automatic grab the hammer
Max. tested sample size	300300100mm (LWH)
venting: Located at the back of the cabinet, exhaust fan diameter 120mm, the duct length 100mm, convenient to connected with external laboratory high-power exhaust fan
Equipment volume	8208302030mm (LWH)
PLC controller	4004501080mm (LWH)
Power supply: AC220V±10%, 10A 50Hz 1∮

For more detail information please contact with us

UN38.3 Standard Basis Battery Vertical Impact Testing Equipment Free Drop Tester

1.How can we guarantee quality?
 Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

 2.What can you buy from us?
 Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
 environmental test chamber, paper testing machine etc.

 3.What details are required for a quotation?
 What is the test standard
 What product or material testing from this machine
 What is the Test object size
 What is you want the machine appropriate size

 4.Can I make changes before I ship?
 No,it can not change if machine finished

 5.When will my order ship?
 Need 10-45 workdays base on which type the the machine

 6.How can I track my order?
 We will send the schedule by each stage
